AEC 380 Embedding Dispensing Console

Detailed description

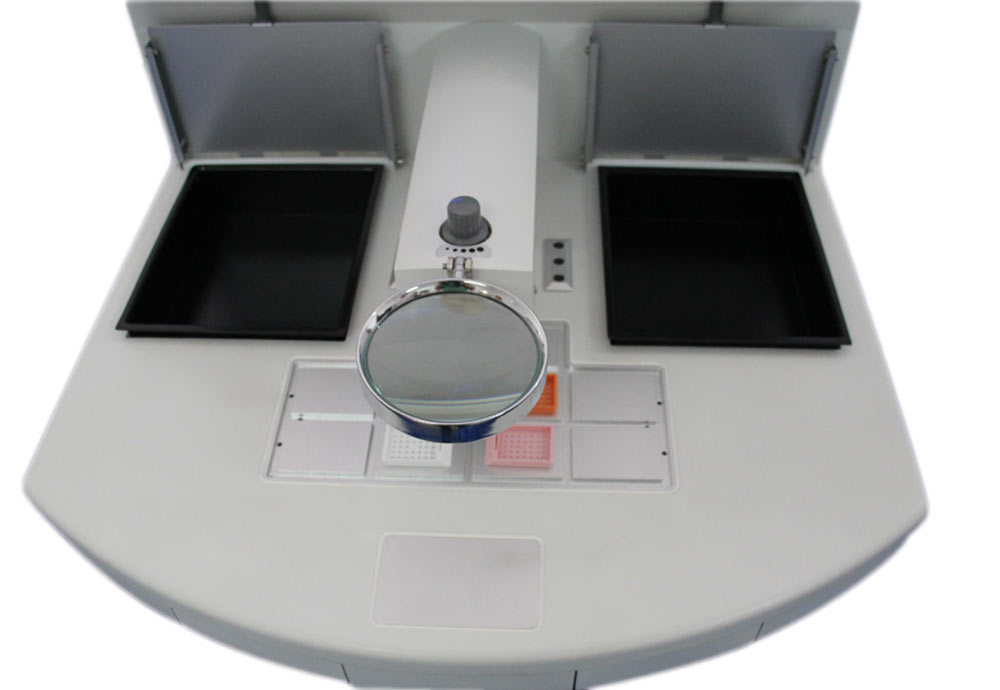

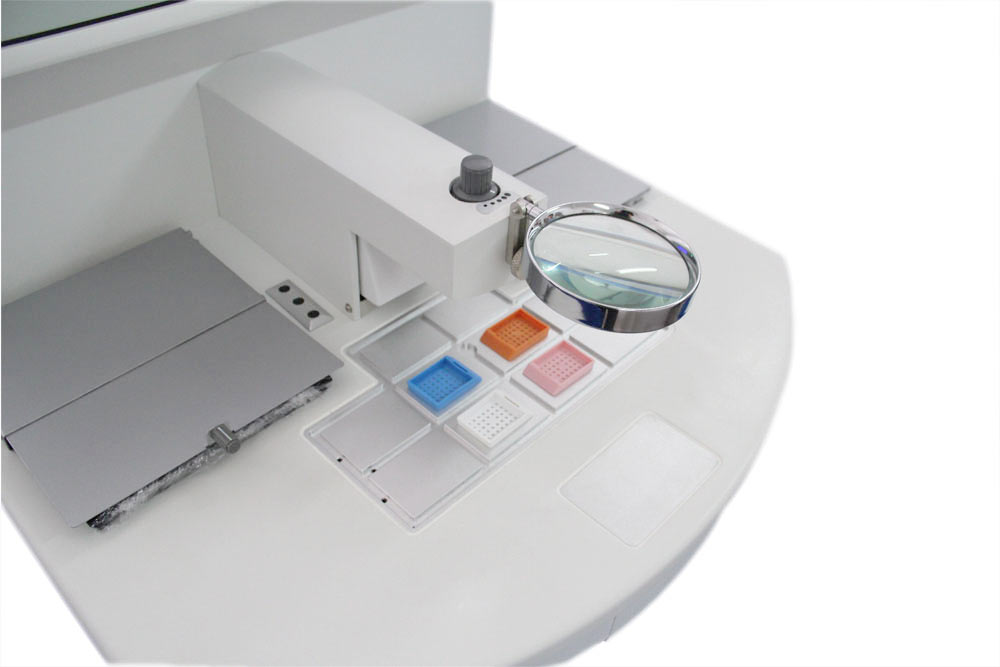

1. Working surface :The tissue embedding cassettes and base mold trays are removable and can be set at different temperatures .
The ergonomic large working surface allows user to process more samples at the same time .The setting knobs offer more precise adjustment of the paraffin flow .
2. All functions on LCD control panle including :
Temperature of working surface
Temperature of molds, cassettes, warming trays
Temperature of paraffin reservoir
3. Weekly automatic On/Off programme .
4. The temperature can be set from ambient temperature to 90deg C and can be adjusted through the control panel

5. The large peltier cold spot is designed to fit both small and large samples . The temperature range is from room temp. to -5 degree .

Nominal supply voltage: 220V±10%, 50hz /110V±10%, 60hz
•Nominal power : 1200W
•Working temperature(increments 1℃):
Paraffin Tank: form ambient to 90℃
Cassettes/molds tray: from ambient to 90℃
Working table : from ambient to 90℃
Refrigerating table: from ambient to -5℃
Forceps Holder: 65℃constant

•Capacity
Paraffin reservoir: 6 Lt
Cassettes/molds tray: 1.4 Lt( 126 cassettes)

•Dimensions
Width: 560mm
Depth: 640mm
Height: 400mm

•Net Weight: About 26KGS
