AEM 450 Semi-automatic Microtome

AEM 450 is a semi-automated rotary microtome, ideal for routine sectioning and research applications in histopathology and laboratories . Easily operation , Safety and high-precision specimen feed, Stability performance to provide high quality sectioning results.

Detailed description

·Display monitors a range of functions including section thickness, trimming, section counter. Separated control panel is easy to operate.
·Spacious magnetized waste tray.
·Light Balance handwheel with ergonomic concept design.

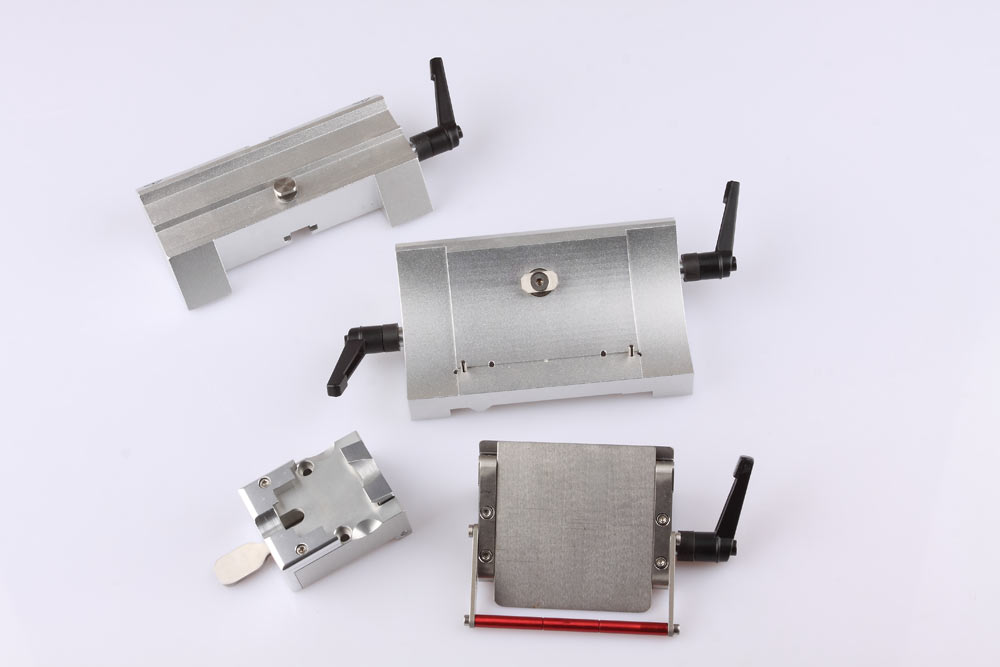

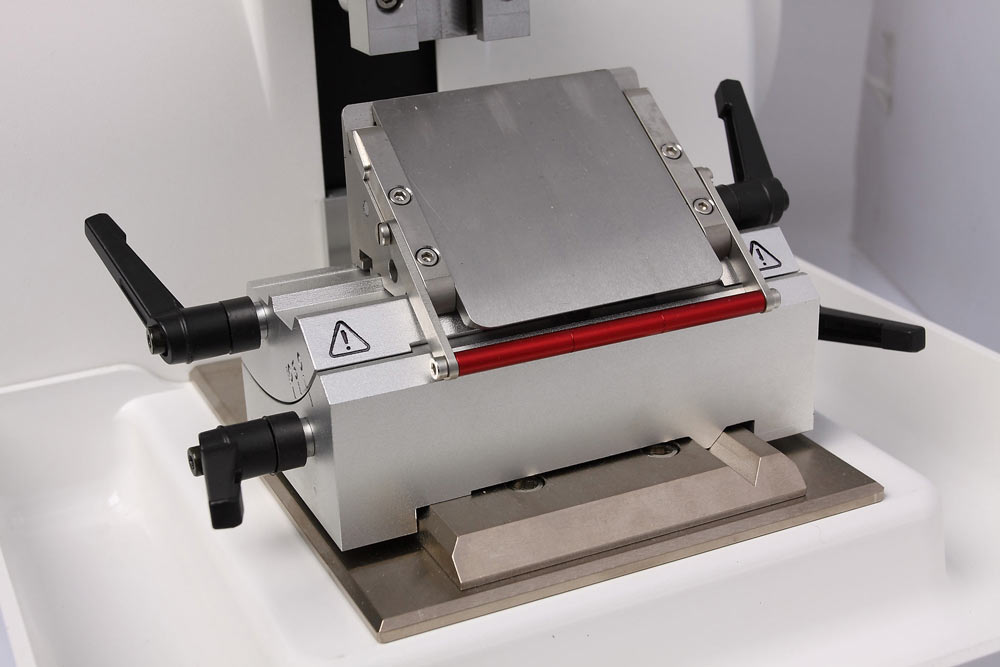

·Specimen Clamp with adjustable function could easily parallel the block and knife on X-Y orientation.
·Retraction function effectively avoid the specimen against the blade when it's turning around.
·Universal specimen holder fits international standard cassette.

·Handwheel locking may be activated at any position to protect specimen and improve operation safety standard .

⊙ section thickness： 0 to 600µm

0 to 2µm，0.5µm increments

2 to 10µm，1µm increment

10 to 20µm，2µm increments

20 to 100µm，5µm increments

100 to 600µm，50µm increments

⊙ trimming thickness: 0 to 600µm

0 to 2µm，0.5µm increments

2 to 10µm，1µm increment

10 to 20µm，2µm increments

20 to 100µm，5µm increments

100 to 600µm，50µm increments

⊙ retraction thickness: 20µm

⊙ specimen horizontal feed:28mm

⊙ specimen vertical feed：70mm

⊙ maximum specimen ：40X50X30mm, or standard cassette

⊙ specimen holder adjusted system:

Horizontal orientation:±8°

Vertical orientation： ±8°

⊙ repositioning of knife holder base :(left-right):50mm

⊙ Eletric coarse feed speed available：750µm/s

⊙ dimensions:

length：520mm,

Width：410mm ,(without handwheel，320mm)，

Height：320mm ,

⊙ weight: about 41KG
