AEM 460 Semi-automatic Microtome

AEM 460 is a semi-automated rotary microtome, this robust instrument be used for cutting harder materials. The unique user-friendly display panel and most comfortable separated handpad perfectly suitabled for those who expect precision section and appreciate the feel . Two forward/backward speed can be selected . The specimen retraction can be switched On/Off by user and the specimen retraction is also adjustable. The advanced feed function allows user quickly move to a memoried cutting position , this perfect function is designed for cutting a large number standard cassettes .

Detailed description

•Display monitors a range of functions including section thickness, trimming, section counter .
•Separated control panel is easy to operate .
•Spacious magnetized section waste tray .

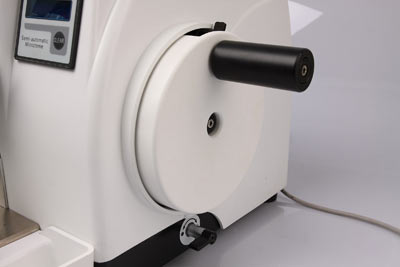

•Light balance handwheel with ergonomic concept design .

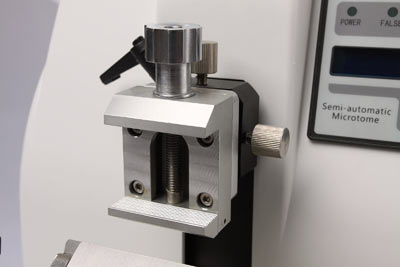

•Specimen Clamp with adjustable function could easily parallel the block and knife on X-Y orientation .
•Retraction function effectively avoid the specimen against the blade when it's truing around .
•Universal specimen holder fits international standard cassette.
•Handwheel locking may be activated at any position to protect specimen and improve safety standard .
•Automatic specimen feed memory function improves the trimming speed and quality .

Section thickness： 0 to 600µm

0 to 2µm，0.5µm increments

2 to 10µm，1µm increment

10 to 20µm，2µm increments

20 to 100µm，5µm increments

100 to 600µm，50µm increments

⊙ Trimming thickness: 0 to 600µm

0 to 2µm，0.5µm increments

2 to 10µm，1µm increment

10 to 20µm，2µm increments

20 to 100µm，5µm increments

100 to 600µm，50µm increments

⊙ Retraction thickness: 5-100µm.

5µm increments (can deactivate)

⊙ Specimen horizontal feed: 28mm

⊙ Specimen vertical feed：70mm

⊙ Maximum specimen ：40x50x30mm, or standard cassette

⊙ Specimen holder adjusted system:

Horizontal orientation: ±8°

Vertical orientation： ±8°

⊙ Repositioning of knife holder base ,(left-right):50mm

⊙ Electric Coarse Feed Speed： 300µm/s (Slow) and 900µm/s (Quick)

⊙Dimension: Length：520mm,

Width：410mm , (without handwheel，320mm)，

Height：300mm ,

⊙ Weight: about 42kg
